实验咨询

实验研究能够为客户提供令人信服的数据和结果，供客户用于其内部研究目的或着用于申请支持安全许可和执照批准程序。嘉斯福科技可与相关领域实验专家进行合作开展实验研究或者提供相关实验技术咨询服务。这些机构有资质利用这些实验设备进行可燃气体和粉尘扩散输运和燃烧爆炸相关的实验，并提供高质量的实验数据，可以用于：

  • 填补已有专业知识的空白，特别是气体混合、燃烧现象和可燃气体及多相可燃混合物的火灾，以提升风险评估能力和改进缓解策略。
  • 为进一步开发适用于大型工业设施和大规模公共场所的先进数值仿真模型提供可靠的验证数据。
  • 开发新的测试程序以确定部件和系统的安全相关属性。
  • 评估系统新增部件的安全性能。
  • 开发可燃气体和粉尘风险评估的工程经验关系式和判断准则，将其应用至三维高精度CFD仿真软件，为风险评估和风险缓解措施优化提供科学依据。

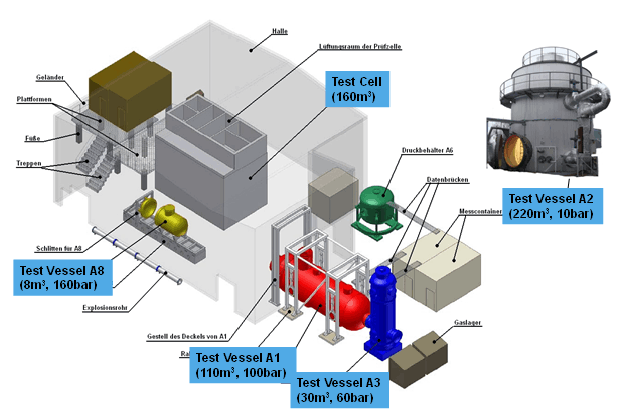

KIT-HYKA可燃气体实验中心空间布置图

HYKA at KIT Hydrogen Safety Center including various test vessels, tubes and chambers with working pressure up to 160 bars.

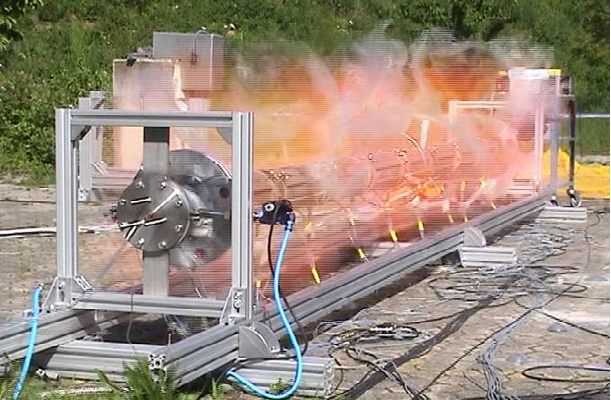

12m 爆轰管

used to study combustion processes in hydrogen-air mixtures. Especially quenching, flame acceleration and deflagration-to-detonation-transition (DDT).

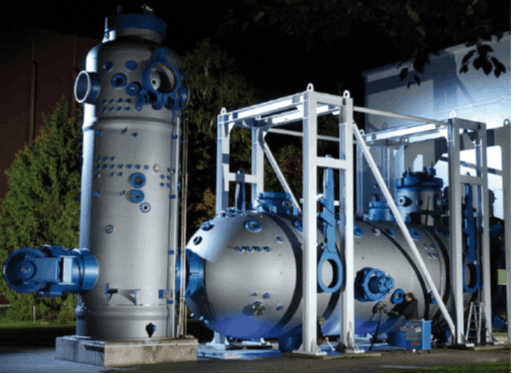

A1和A3实验装置外部布置

A1: D = 3.4 m, L = 12 m, Volume = 105 m³
A3: D = 2.5 m, H = 8 m, Volume= 33 m³
Pressure: A1: < 100 bar; A3: < 60 bar
Experiments: turbulent combustion and detonations, vented explosions, hydrogen distribution, integrity of mechanical structures under high pressure load, natural convection ...
Projects (examples):
LACOMECO (2008-2011): Flame behavior of H2 / O2 / N2 mixtures with vertical concentration gradients with low to high geometrical congestion
GRS-Project (2008-2016): flat layer flame acceleration experiments for development of more robust and general criteria for flame acceleration.
H2FC (2011-2015): offered for transnational access

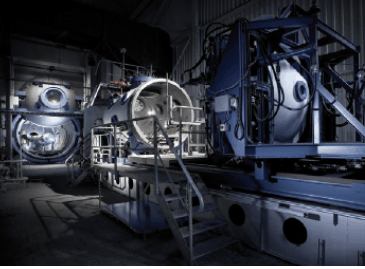

A1和A8实验装置内部布置

Dimension: D = 1.8 m, L = 3.7 m, Volume = 8.8 m³
Pressure: < 120 bar (static)
Experiments: studies on gas combustion and detonations, vented explosions, hydraulic and pneumatic
equipment explosions, integrity / fracture of mechanical structures under high pressure load, blast vessels, tests in vacuum, pressurized gas atmosphere or pressurized water.
Projects (examples):
FUSION (2007-2011): Ignition behavior of hydrogen rich mixtures under sub-atmospheric pressure
Industry (2011-2013): Large series of blast behavior, missile formation of Type 3 and Type 4 vessels
filled with H2 up to 700 bar

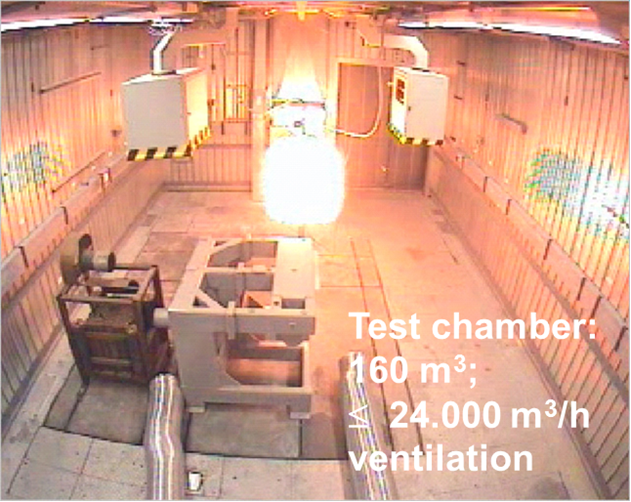

气体燃烧实验间 Q160

Dimension: 8.53 x 5.5 x 3.3 m, Volume = 160 m³
Pressure: < 10 bar (static)
Experiments:  studies on distribution, ventilation system,
vented combustion and detonation of H2 (< 20 g in case of detonation), testing of automotive systems.
Projects (examples):
ICEFUEL (2006-2009): Release from LH2 hydrogen pipeline. Cryogenic multiphase jet behaviour, ignition and flame properties.
HyIndoor (2011-2015): EC Project for indoor use of hydrogen – vented explosions. Investigate venting strategies

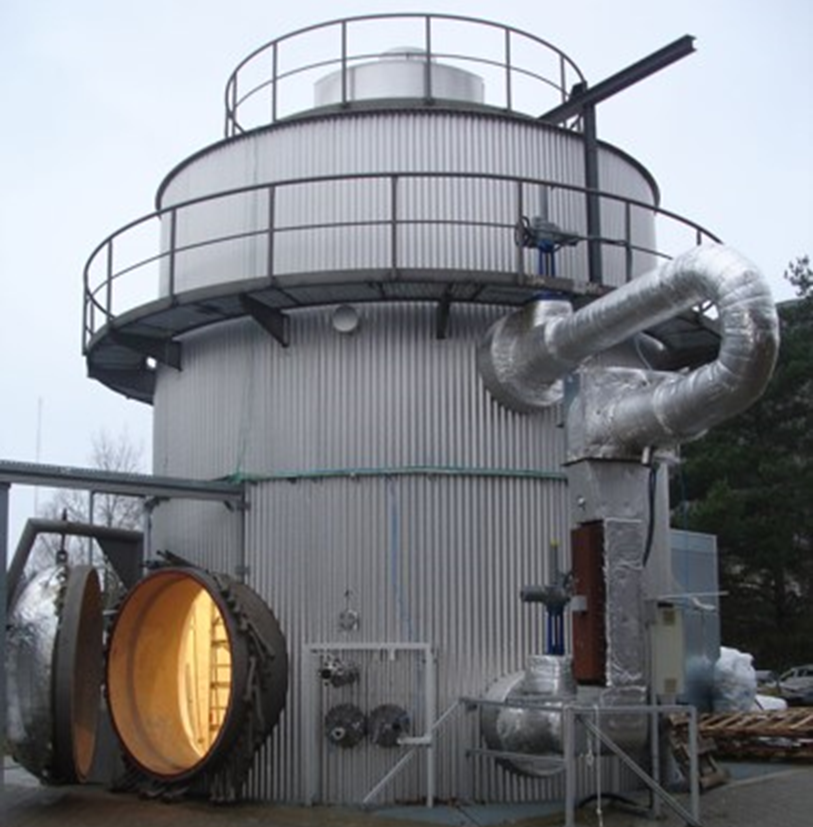

A2测试容器

Dimension: D = 6.0 m, H = 9.0 m, Volume = 220 m³
Pressure: < 10 bar (static)
Experiments: studies on fire, gas combustion
and detonations, vented explosions, hydraulic
and pneumatic equipment, integrity and
fracture of mechanical structures under excessive
pressure load, blast.
Projects (examples):
LACOMECO (2008-2011): flame instabilities of large lean inventories with vertical mixing gradient.
CryoSys (2009-2011): fire testing of automotive cryo-compressed storage vessels.
POFII (2012-2013): 2D flame instabilities in flat layers.

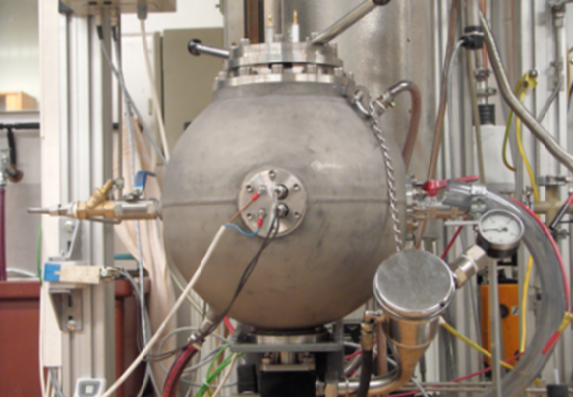

DUSTEX: 20 L 标准气体粉尘爆炸实验装置

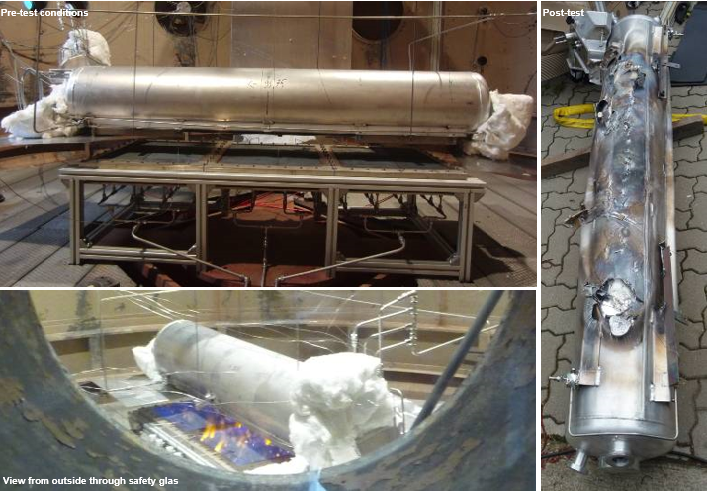

Bonfire testing of Cryocompressed CcH2 Storage Tank System
